Specification
- Cut-Out Dimensions: 153 mm x 222 mm
- Frequency Response: 29 Hz to 28 kHz
- Grade: A Series
- Impedance: 4Ω
- Magnet Size: Φ80 X 15
- Magnet Weight: 323 g
- Maximum Music Power: 450 W
- Mounting Depth: 72 mm
- RMS: 90 W
- Sensitivity (1W/1 m): 92 dB
- Size: 6″ x 9″
Product Features

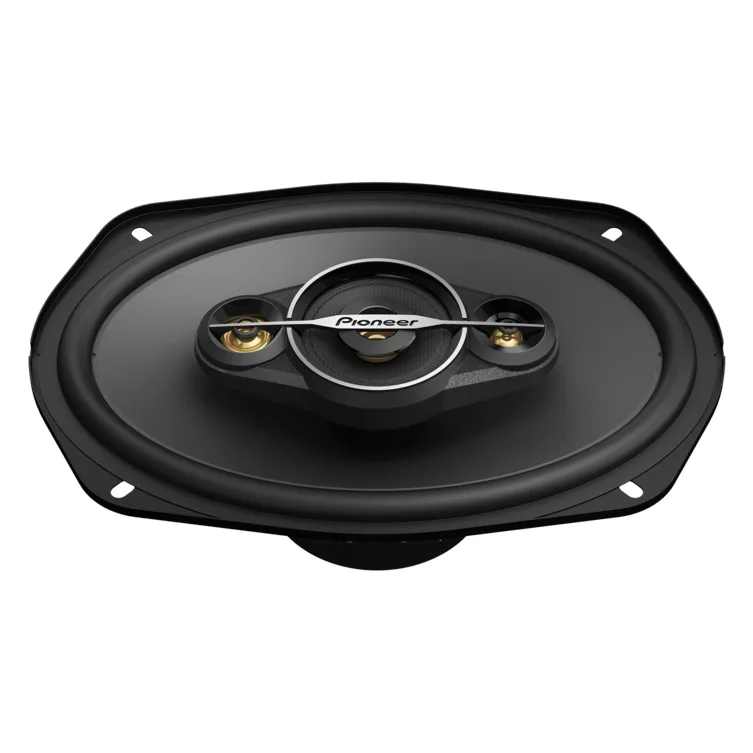

- Open and Smooth: Pioneer’s OPEN & SMOOTH sound concept provides a seamless and smooth transition between the midrange and tweeter drivers and delivers uniform off-axis frequency response optimized for automotive applications where one or more speakers are often aimed away from the listeners’ ears.

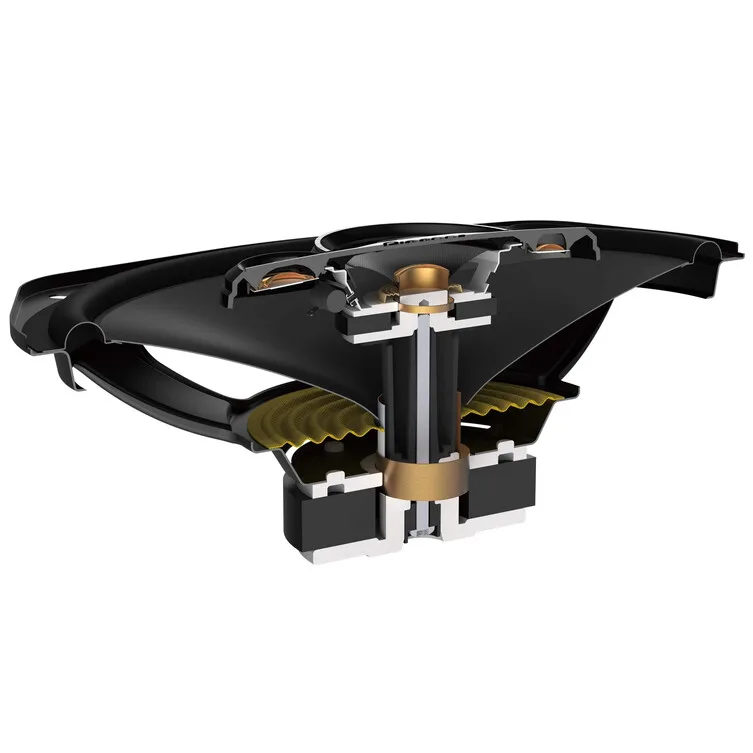

- Carbon & Mica Reinforced IMPP™ Cone: The new, rigid Carbon & Mica Reinforced IMPP cone and Elastic Polymer Surround provide quicker response and higher sensitivity. Produces deep and rich bass sound.
- 3D Hologram
