Specification
- Cut-Out Dimensions: ø144 mm
- Frequency Response: 33 Hz to 58 kHz
- Grade: A Series
- Impedance: 4Ω
- Maximum Music Power: 350 W
- Mounting Depth: 59 mm (Woofer) 14 mm (Tweeter)
- RMS: 80 W
- Sensitivity: 90 dB

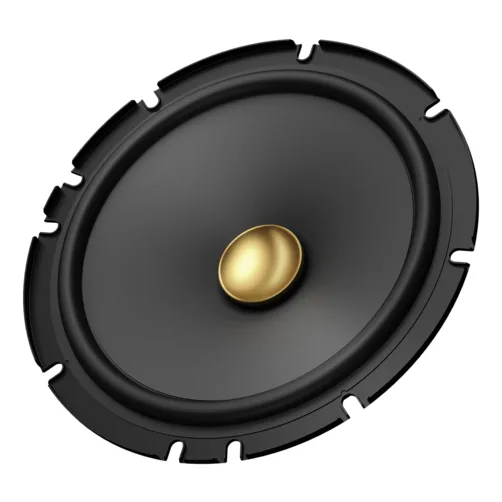

- Size: 16.5 cm (6.5″) (Woofer) 20mm (Tweeter)
Product Features

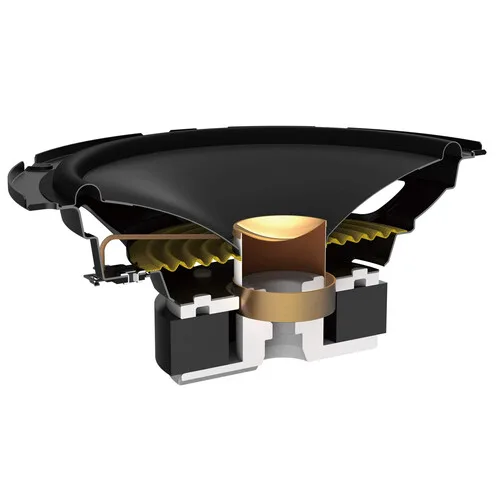

- Glass Fiber and Mica Reinforced IMPP™ Cone: The new, rigid Carbon & Mica Reinforced IMPP™ cone and Elastic Polymer Surround provide quicker response and higher sensitivity. Produces deep and rich bass sound.

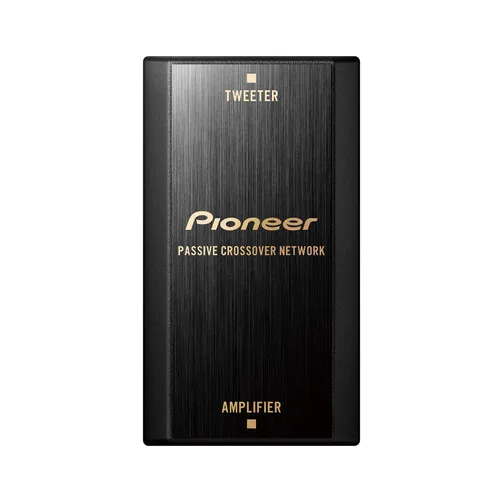

- Open and Smooth: Pioneer’s OPEN & SMOOTH sound concept provides a seamless and smooth transition between the midrange and tweeter drivers and delivers uniform off-axis frequency response optimized for automotive applications where one or more speakers are often aimed away from the listeners’ ears.
- Adapter for Flexible Installation: Based on recent research data, the design of the A-series adapter has been changed to offer only a wider range of installation options, but also higher damping and improved sound.
