Specification
- Driver Complement: 6″x8″(152mmx203mm) Subwoofer
- Amplifier Power: 100Wrms; 200W Max
- Frequency Response: 30Hz – 150Hz
- Fuse: 15A
- Maximum Current Draw: 13 A
- Quiescent Current Draw: <600 mA
- Input Sensitivity: 0.1 V – 4.0 V Low-Level Input; 0.25 V – 20V High-Level Input
- Crossover Frequency: 50 Hz – 150 Hz
- Crossover Slope: 12 dB/octave
- Bass Boost: 0dB to + 12dB @ 50Hz
- Dimensions (L x W x H): 10-1/4″ x 7-11/16″ x 2-15/16″(260.0mm x 195.0mm x 74.6mm)
- Weight: 7.78 lbs (3.53kg)
Product Features

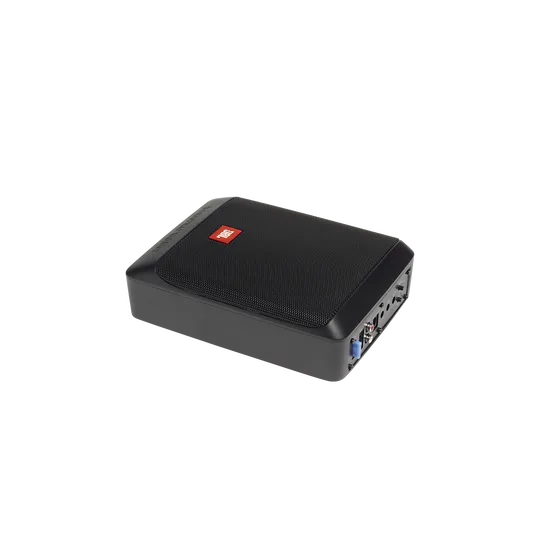

- Big Bass, Small Space: JBL BassPro Nano delivers bumping bass and takes up little space. The on-board 100Wrms amplifier has been performance matched to subwoofer to deliver the amount of clear, tight bass.
- Intelligent Electronic Design for Reliable and Extraordinary Performance: The BassPro Nano employs high-pass filters and limiters that deliver exceptional at-the-limits performance.
Remarks
- 1 x Under seat subwoofer
- 4 x Screws
- 4 x Small metal plate

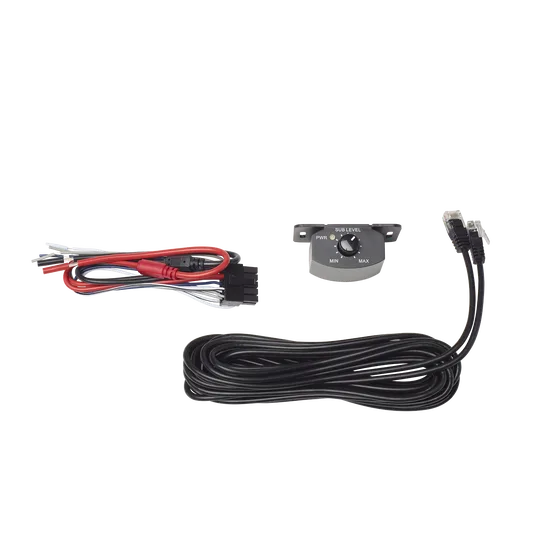

- 1 x Wiring harness
- 1 x Bass volume remote control(with cable)
- 1 x 15A Fuse
